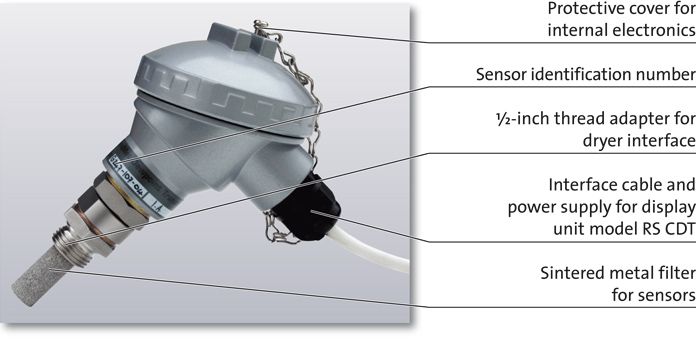

Dewpoint Transmitter CDT

Technical data:

Dimensions: Length: 170 mm | ø 82 mm
Power supply: 10-28 V DC
Mode: 2400 bps / 8 data bits / 1 stop bit; dew point and temperature
Cable length: max. 15 m
Measuring range: -80 / +20 °C dewpoint | -20 / +40 °C temperature
Accuracy: Dewpoint ± 1.0 °C at -70 °C < TP < +20 °C | Temperature ± 0.3 °C
Resolution: Dewpoint ± 1.0 °C at -70 °C < TP < +20 °C | Temperature ± 0.1 °C
Ambient temperature: -40 °C / +70 °C
Operating temperature: -20 °C / +40 °C
Operating pressure: max. 300 bar
