Sample quantity dryers at
Amboss + Langbein

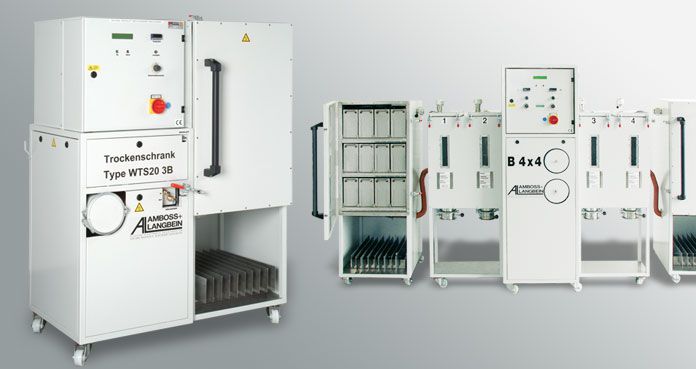

Dehumidifying dryer WTS20 3B | Two TS20 3B drying cabinets connected to dehumidifying dryer B 4×4

Sample and small volume dryers

The sample quantity dryers at Amboss+Langbein are designed to handle small quantities orsample amounts, in contrast to the norm for large dryers and high volume systems. In a V2A stainless steel drying chamber, material is continuously dried by dry air. The drying cabinet is mobile and can be used anywhere.



Dehumidifying dryer WTS 3B 20
“24 in one stroke”

Properties:

  • Mobile unit
  • Continuous drying
  • Cabinet and chamber made of high-quality V2A stainless steel
  • Stand alone or or as an auxiliary unit to any Amboss+Langbein dehumidifying dryer
  • Seven day timer
  • Available options: 24 stainless steel containers @ 5 l,
    12 stainless steel containers @ 10 l, or
    6 stainless steel containers @ 20 l


Applications: Sample amounts and small quantities


Specifications:

  • Dimensions (W×D×H): 1000 × 580 × 1400 mm
  • Volume: 120 l
  • Throughput: 20 kg/h
  • Dry air volume: 120 m³/h
  • Dewpoint approximately: - 55 °C
  • Drying temperature: 60 °C - 160 °C.



>
Brochure – PDF Download



Dehumidifying dryers D 2x1 and D 4x1

Using sample attachments (PL 50 and PL 200), these two D series dryers can be used as sample quantity dryers
or for drying master batches.

  • For small quantities
  • Can be used as an add-on dryer on the production unit
  • Continuous drying


Dehumidifying dryer D 4×1 and 3 drying vessels @ 10 l
..............................................................................................................................................................................
