Large-scale dryers at Amboss + Langbein

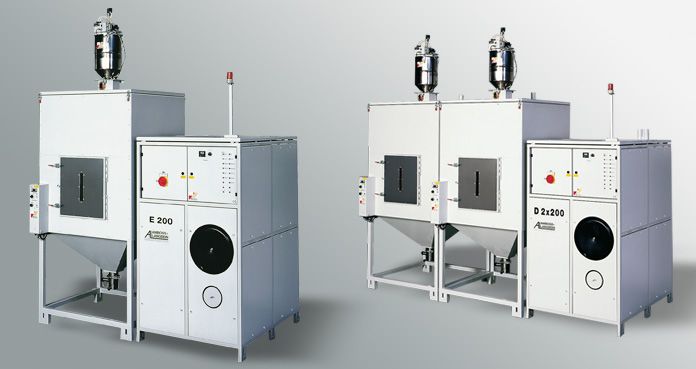

Large-scale dryer E 200 | Large-scale dryer D 2x200 (vessel size 1x 1200 l or 2x 1200 l)

Economical large-scale dryers in a modular system

Amboss+Langbein large-scale dryers are available in the E series with single vessels or in the D series with double vessels. The dryer system is custom built to meet operational requirements and can be erected in very tight space-restricted areas. Dryers are dewpoint-monitored and equipped with energy-efficient heat exchangers. Individualised material monitoring prevents system overload from excessive material intake as well as plastics over-drying.


Properties:

  • All material-contact parts made of V2A stainless steel
  • Gentle material drying
  • Ultra heat insulated V2A stainless steel cleaning access point
  • Sample and test drying online during normal production
  • Full control and complete documentation of drying parameters
  • Job- and batch-specific drying
  • Drying capacity can be expanded
  • Patented cleaning system
  • Integrated machine fill using dry air
  • 1 to 4 times the material discharge
Specifications:
  • Dry air volume: 300 m³/h – 1200 m³/h
  • Dewpoint: approx. - 60 °C
